LUMAG ROLLER CHOPPER HC15HZ-NL

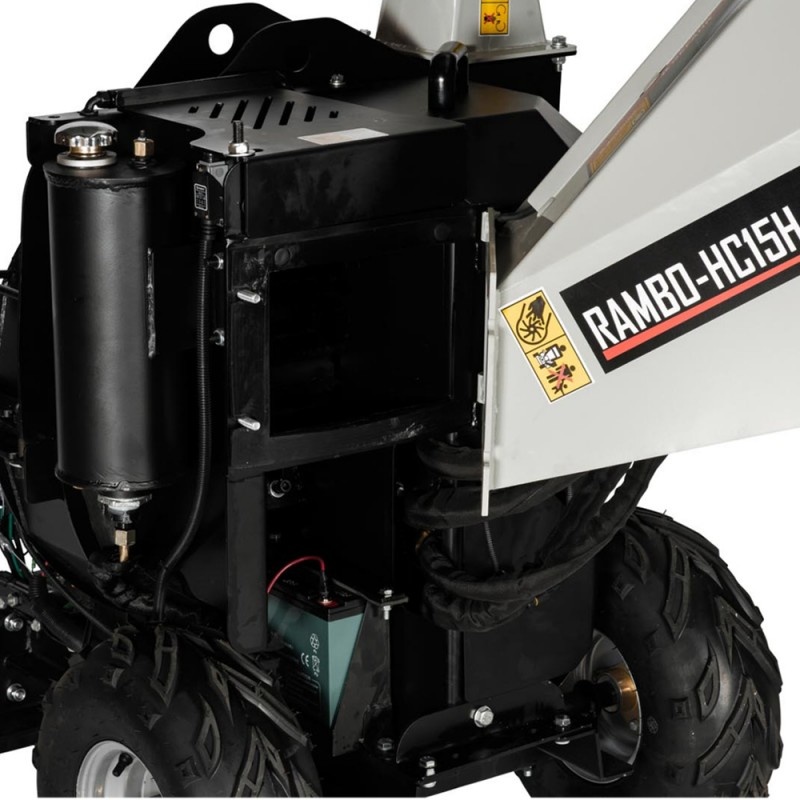

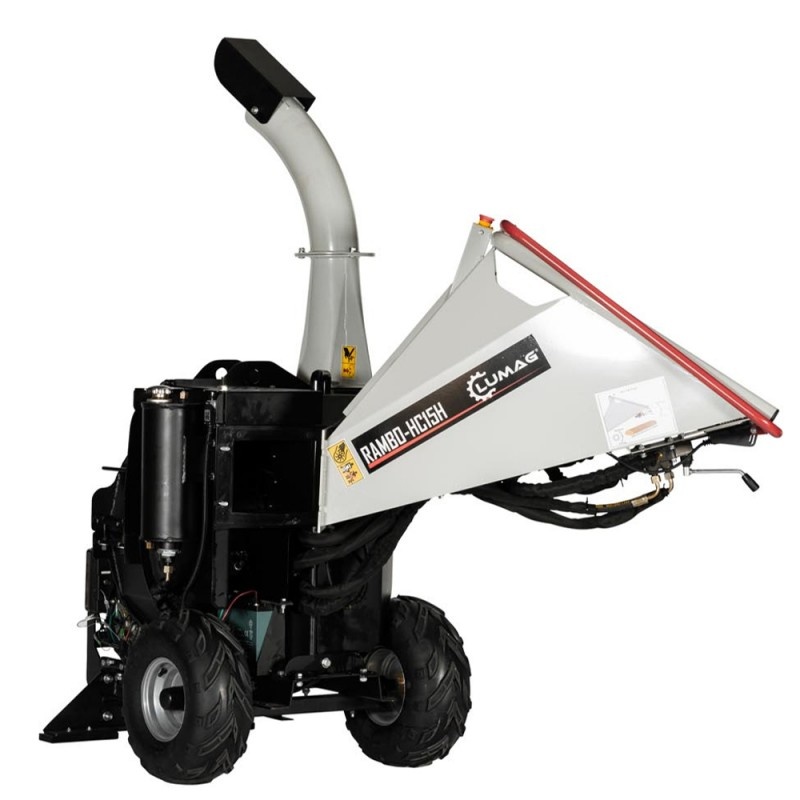

Very powerful Lumag HC15HZ-NL PTO driven chipper with a hydraulic feed roller. (the pictures deviate from the delivered machine. The machine shown is the petrol version HC15H-NL)

This feed roller grips the wood you are feeding in and pulls it in evenly.
The yield of your forage harvester increases enormously. Even the most twigged branches are easily pulled in and chopped.
The feed roller is actually indispensable when feeding branches with thorns or spines.
The advantage of the infeed roller is that the supply to the knives takes place at a constant and even speed.
This roller takes care of the vibrations that you normally feel when feeding wood into a chipper.
Also leafy pruning waste (such as branches with a lot of leaves on them) is easily and evenly drawn in by the roller.
You can of course stop the roller and also let it run “backwards” if necessary, for example in the event of a blockage.
The infeed roller brings the material to the 2 knives (and a counter knife) which shred the material.
The shredded material is then further reduced in size by 10 flail knives.

The minimum capacity of the drive (PTO) is 20 HP.
The PTO is not included.
The three-point suspension falls into the Kat. I+II.
The shredder has a 360 degree adjustable discharge shaft and a hinged discharge funnel.
This means that you can easily clean the machine.

Of course you can work very safely with this machine due to all kinds of safety features.
The powerful tractor drive (min. 20 hp) ensures that branches up to 120 mm can be chopped.
The large and extra long hopper makes filling the machine very easy. This makes the HC15HZ-NL a machine that shreds everything from branches to pruning waste.

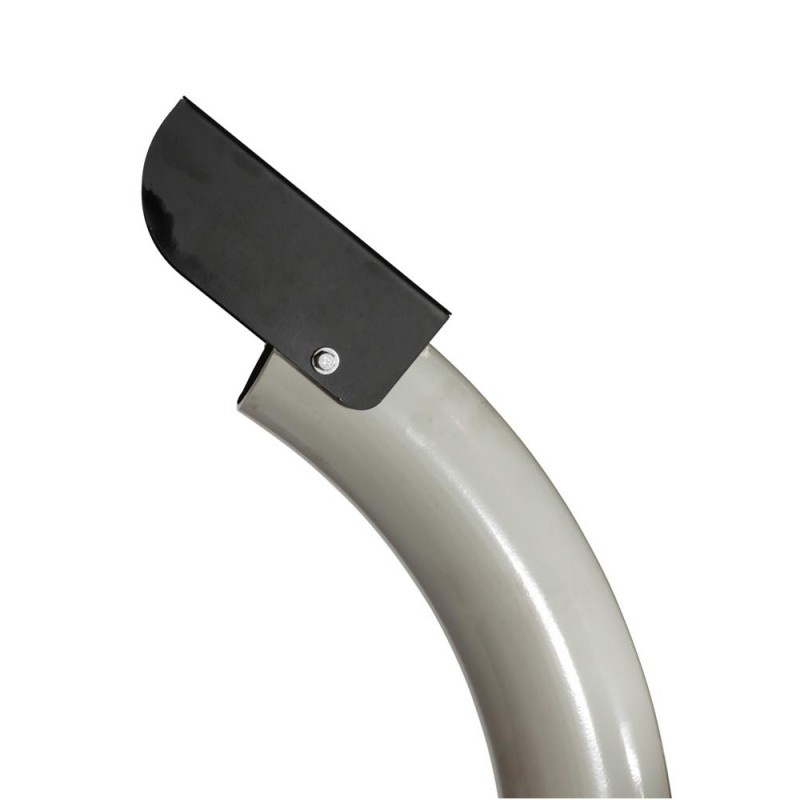

The wood chips are ejected high out of the machine through the discharge tube and the target plate determines the ejection position. The discharge chute is adjustable.
So you can decide for yourself where you put the collection bag (wheelbarrow, trailer, etc.) because the shaft can be adjusted to all sides.
The very robust insert shaft has been made pivotable, so that you can easily lower the insert shaft to one side in the event of blockages, cleaning or replacement of the knives.

The machine can shred branches, shrubs, hedges, etc. perfectly.
You can also have green waste (such as pruning waste from a conifer) reduced by the shredder, but the machine is not suitable for only foliage waste (such as ferns).
You can of course use the shredded material perfectly as a ground cover.

Engine type
PTO drive
Three-point suspension
Cat. I + II
PTO shaft speed
540 rpm
PTO drive
Via tractor with at least about 20 hp.
max. diameter input
120mm (continuous 90/110mm)
Hydraulic oil
4 liters
Hydraulic pump
10ml/H, 20MPa
Blade speed
2,250 rev. per minute
Number of knives
2 pieces on blade disc and 1 counter blade and 10 flails for extra reduction
Mulching
new
Infeed roller
Speed 50-600 RPM.
Noise level (LWA)
114dB(A)
Machine dimensions (L x W x H)
2900 x 965 x 1800mm
Pack sizes (L/W/H)
1600x870x1230mm
Weight Gross (incl. packaging)
330 kg
Weight Net
289 kg
art. no.
HC15HZ-NL
EAN code
4047424009437
