Battery dumper MD500EPRO

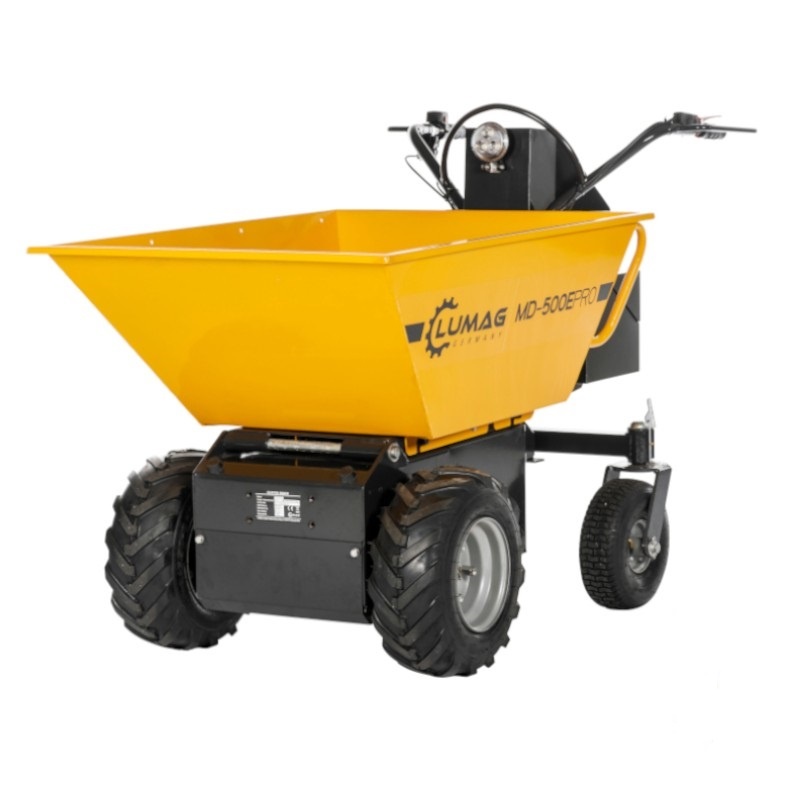

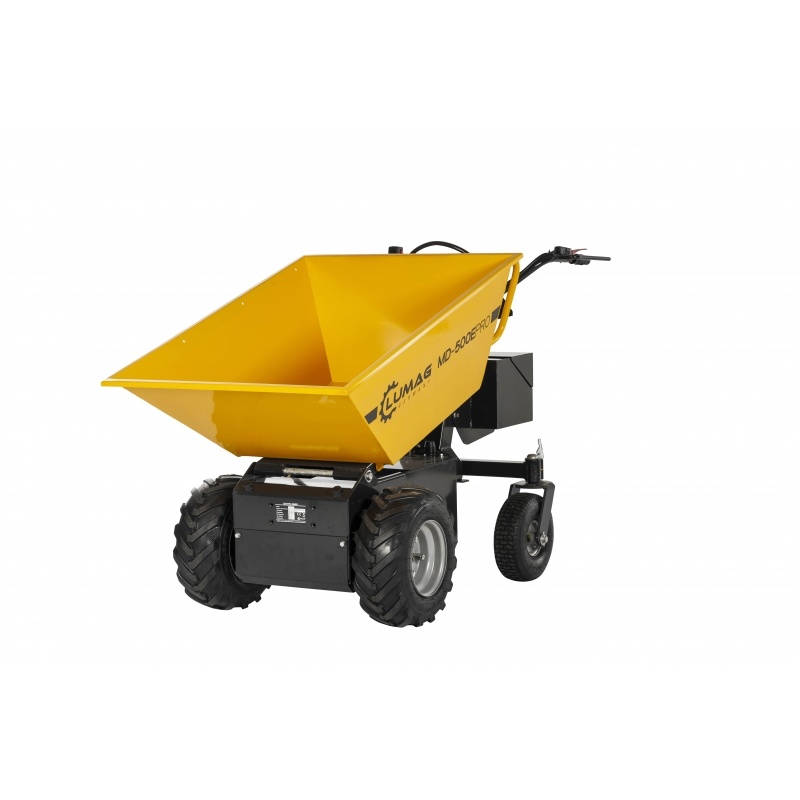

This Lumag MD500EPRO mini dumper
This Lumag MD500EPRO battery-powered wheelbarrow with tipper is unique because it is equipped with an electric motor with a 48 volt battery. The engine delivers a capacity of 750 watts. The electric motor in combination with the belt drive makes this a very universal dumper. The machine is very suitable for the transport of many materials weighing up to 500 kg over various surfaces.
By using tyres instead of tracks, the surface is less stressed and the machine is very manoeuvrable, even on hard and softer surfaces. The MD500EPRO has two swivel wheels at the back for easy steering.
The stability is further supported by a swinging rear axle. This ensures that your wheelbarrow almost always touches the ground with 4 wheels. The electric motor ensures that the noise production is minimal and the machine can also be used in a closed space. The 48 volt batteries (4 pieces of 12 volt with 35ah capacity) ensure that you can use the machine for a maximum of 8 hours (charging time 7 hours).
The machine is 86 cm wide! If necessary, this width can be reduced to 82 cm by adjusting the steering levers.

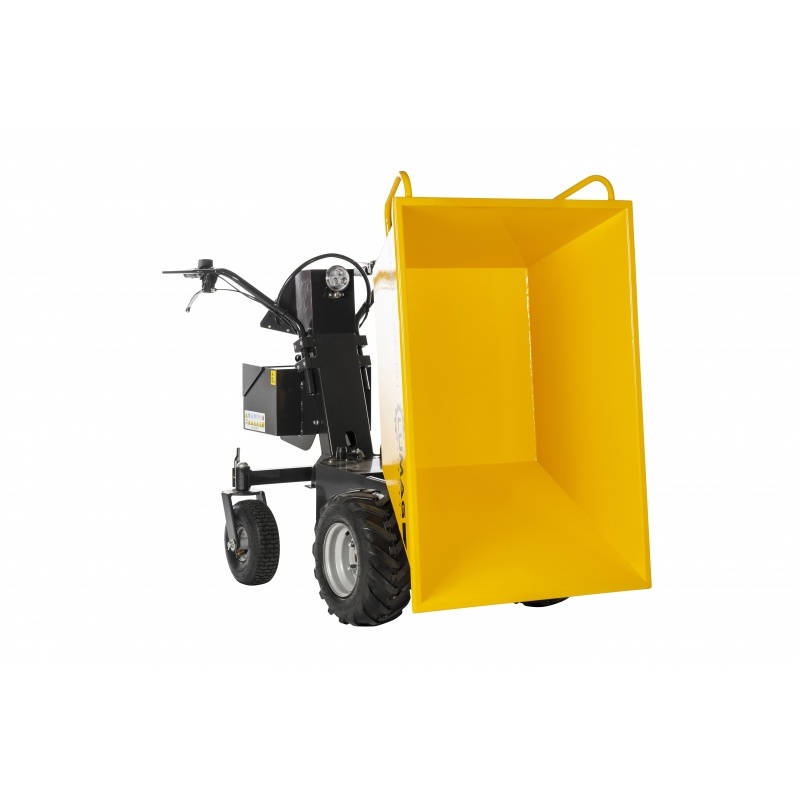

The tipper dimensions are (LxWxH) 1135x82x38 cm. The maximum load capacity is 500kg. The machine's own weight is 178kg. The tipping of the loading platform is done manually.

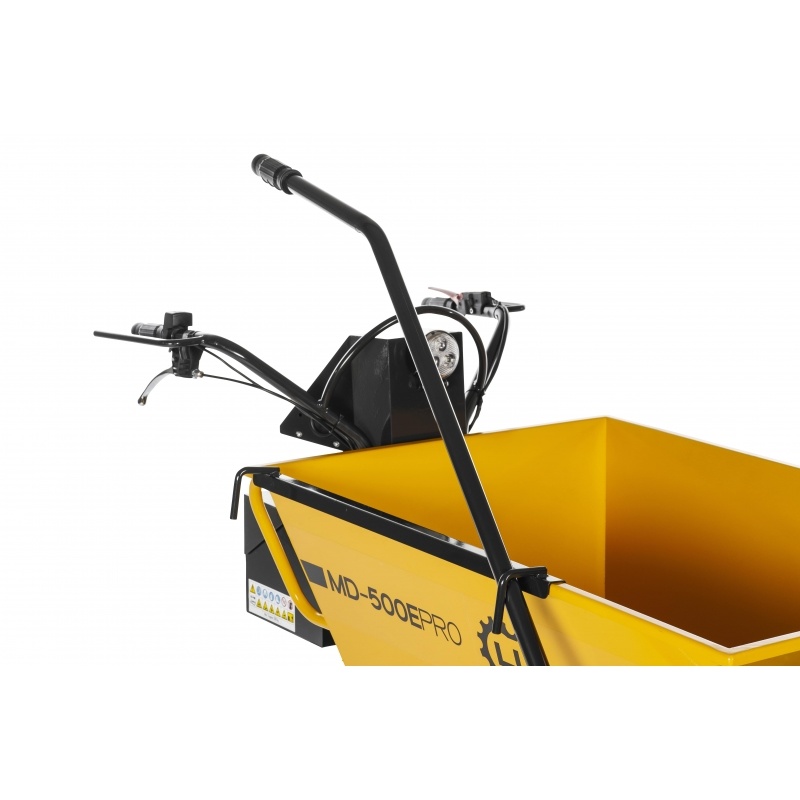

However, the placement of the tipper makes this easy (the two extra gas springs provide extra guidance and prevent the tipper from tipping back). The "steering wheel" of the MD500EPRO is adjustable in height. The LED lighting provides sufficient light in a dark environment.
The MD500EPRO battery-powered wheelbarrow is supplied WITHOUT snow plough.

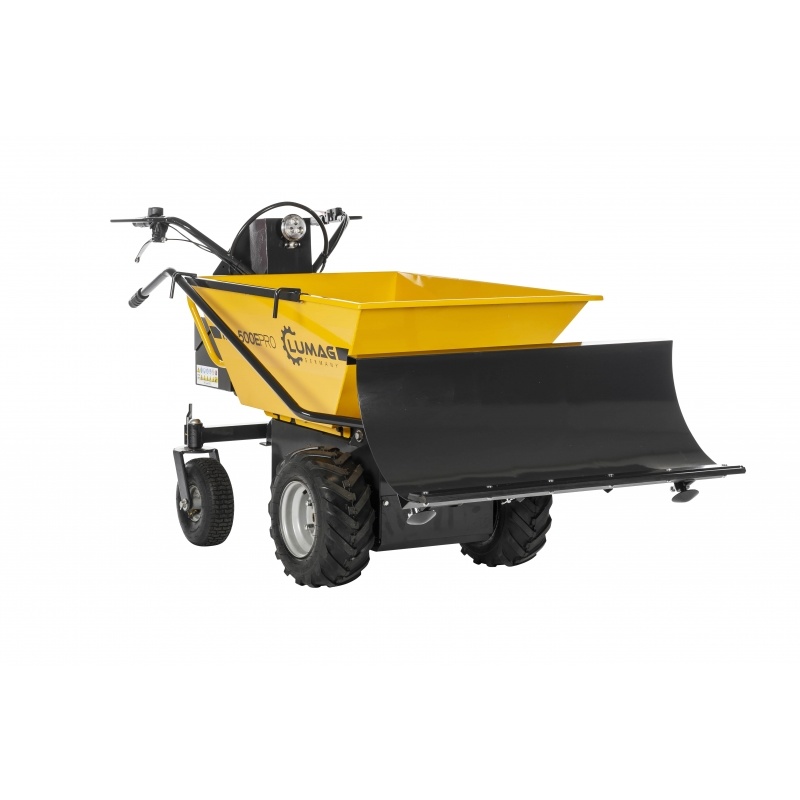

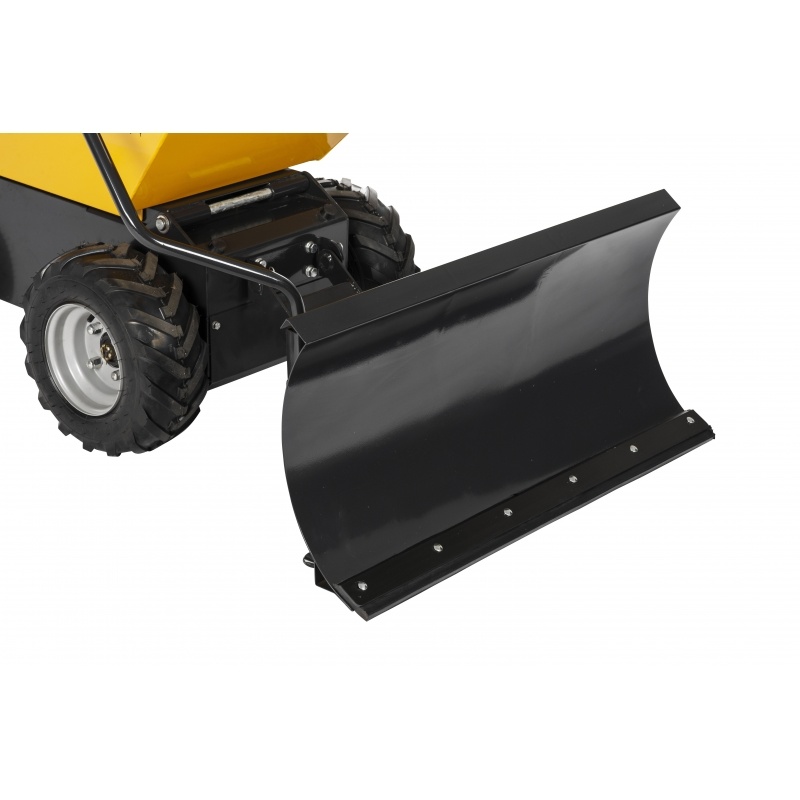

The snow plow pictured is available as an accessory. Other attachments are also available. You can replace the tipper with, for example, a flat loading platform or an extra large plastic container.
Engine/drive750 watt electric motor
DriveFullElectric Batteries
4 x 12 volts, 35Ah is 48 volts
Gears 1 forward (max. 5 km/h); 1 reverse (max. 2.5 km/h)Usage time
Max. 6-8 hours
Charging time8-10 hours
Max. load capacity 500 kg
Tipper 113.5x82x38 cm
Working width 82 cm
Loading box capacity 260 litres
Mechanical tipping device + 2 x gas spring
Dimensions (LxWxH) 166x82x108.5 cm
TiresFront: 6.50-8;
Rear 3.50-4
Handbrake Yes, mechanical
Brake functions Drum brakes
Sound level LWA93 db (A)
Max. gradient 15%
Net weight 178 KG
Art. no. MD500EPRO
Packaging dimensions (L/W/H)1660 x 820 x 1085mm
Gross weight 195 kg
EAN code4047424004807
