GROUND SLOT TILLER GF800

LUMAG GROUND SLOT TILLER GF800

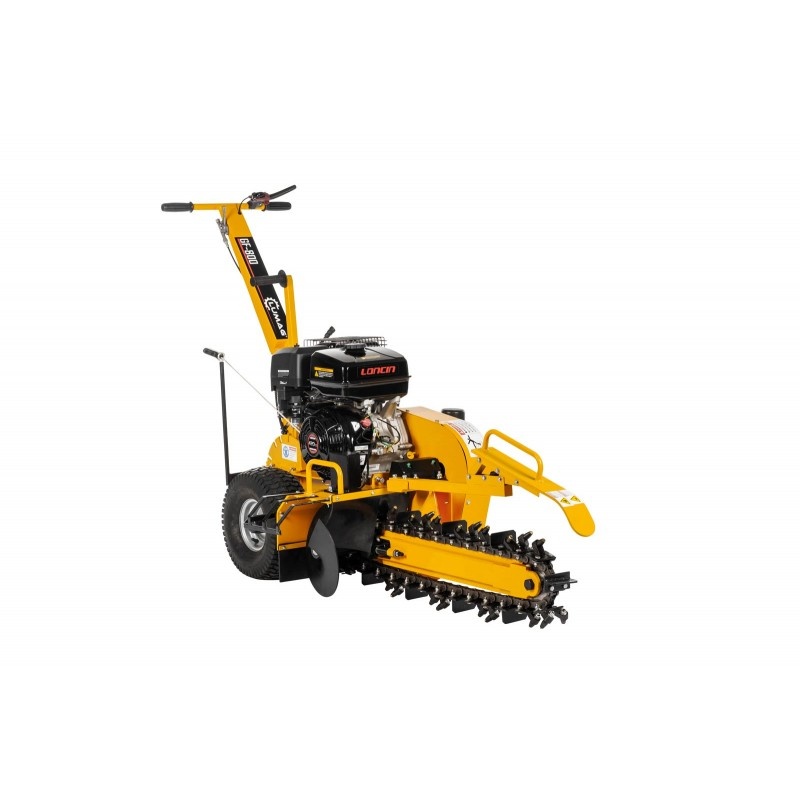

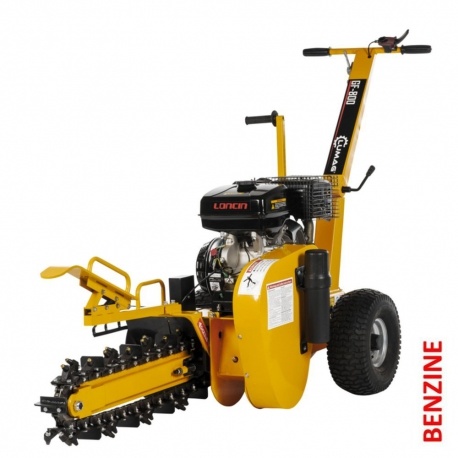

With the Lumag GF800 cable trencher (also called trench digger) GF-800 you can mill trenches for laying and laying cables, installing drainage and making trenches for watering as well as placing hedges.

The machine is very robustly built, equipped with a powerful 13 hp petrol engine and easy to operate.
The big advantage is of course that you do not damage the surface too much.
The standard sword realizes a maximum slot depth of 60cm and a maximum width of 10cm.

The sand raised by the chain of the trencher is moved to the side by a specially developed worm wheel. The chain has carbide teeth.

Type Engine
Air-cooled 1-cyl. 4-stroke OHV petrol engine
max. assets
13 hp
cylinder capacity
420cm³
Engine manufacturer
Loncin ( 3 year warranty!)
Tank content
6,5 liter
Fuel type
Euro 95 / 98 /Alkylate petrol (Aspen 4)
Start system
pull starter
Oil tank capacity
1.1 liter
Engine speed
3,600 per minute
Milling depth
3 positions: 200, 400,600mm
Milling depth max.
600mm
milling width
max. 100mm
Sound level LWA
114 dB(A)
Machine dimensions
2100x720x1100mm
Pack sizes (L/W/H)
1130 x 750 x 730mm
Weight Gross (incl. packaging)
195 kg
Weight Net
180 kg
art. no.
GF800
EAN code
4047424006535
