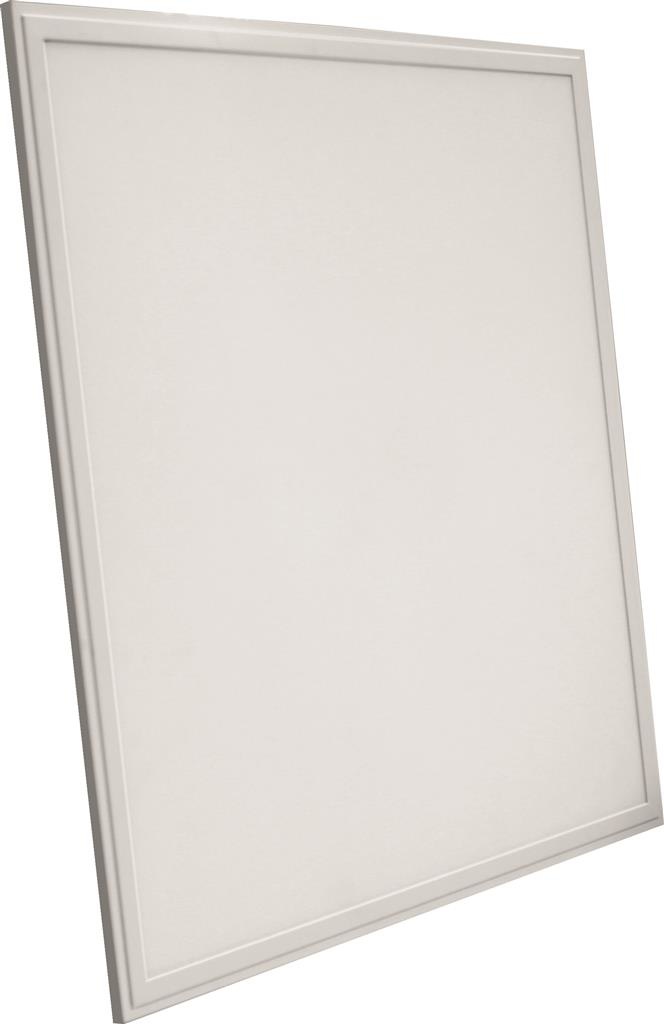

RELED BUILT-IN PANEL 595X595MM, 32W-4000K-3600LM
RELED BUILT-IN PANEL 595X595MM, 32W-4000K-3600LM
RELED recessed panel (square), 40W.
SPECIAL CHARACTERISTICS
LED panel, square
Power supply: 110-240V - 60Hz
Power: 40 Watt
Colour White
Material: aluminum
Light intensity: 3200 lumens
Light color: 4000K
Size: 595 x 595 x 9 mm
Article number RELED819422
EAN code 8718309819422
Brand RELED
Net weight (kg) 0.06
Beam angle Unshielded / diffuse
Installation height / depth 40 mm
Installation length 595 mm
Installation width 595 mm
Housing color White
Light color White
Color temperature 4000 - 4000 K.
Luminaire cover with thermal insulation material possible No.
Degree of protection (IP) IP44
Dimmable 0-10 V No.
Dimmable 1-10 V No.
Dimmable DALI No.
Dimmable DMX No.
Dimmable DSI No.
Dimmable GPRS No.
Dimmable LineSwitch No.
Dimmable mains voltage modulation No.
Dimming manufacturer specific No.
Dimmable trailing edge No.
Dimmable leading edge No.
Dimmable with potentiometer (integrated) No.
Programmable dimming No.
Dimmable RF No.
Dimmable Sine Wave Reduction No.
Dimmable Touch and Dim No.
Dimmable with push-button No.
Dimmable Zigbee No.
Emergency power supply integrated No.
Energy efficiency class of the built-in lamp A ++, A +, A (LED)
Height / depth 9 mm
Lamp type LED not interchangeable
Length 595 mm
Light diffuser None
Light emission Direct
Light distribution Symmetrical
Material cover Plastic opal
Housing material Plastic
Max. system power 40 W.
Without dimming function Yes
Nom. voltage 220 - 250 V.
Control via Bluetooth No.
Protection class II
Effective luminous flux according to IEC 62722-2-1 3200 lm
Suitable for flush mounting Yes
Suitable for ceiling mounting Yes
Suitable for emergency lighting No.
Suitable for light line configuration No.
Suitable for surface mounting No.
Suitable for pendant suspension No.
Suitable for wall mounting No.
Suitable for VDU workshop according to EN 12464-1 No.
Housing surface protection None (untreated)
Ballast LED control current controlled
Grid version None
Voltage type AC
Width 595 mm
With air slots No.
Ballast included Yes
With light sensor No.
With light source Yes
With motion sensor No.
