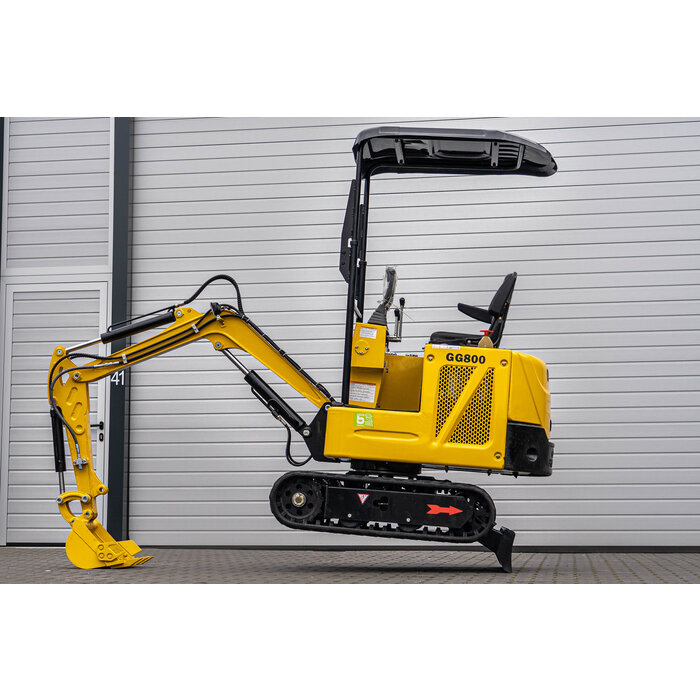

Günter Grossmann GG800 mini Excavator
Günter Grossmann GG800 mini Excavator
A Very durable, strong new excavator model: GG800 from the international
brand Günter Grossmann.
Every Günter Grossmann machine is covered by the company guarantee.
Model GG800 is a great machine for the most demanding construction, electrical and plumbing companies.
We guarantee after-warranty service.
The excavator is manufactured on the basis of solid European technology in Asian countries.
It is powered by a 1-cylinder 8.6 kW diesel engine with a consumption of 1-2 liters / hour, depending on usage.
The machine can reach a maximum digging depth of 1650 mm. Its own weight is only 1000 kg.
The machine is equipped with a 1-speed transmission that can reach a speed of 1.5 km / h.
Standard equipment is a 38 cm wide bucket, additional accessories for the machine can be purchased.
SPECIFICATIONS
- Model: GG800
- Brand: Günter Grossmann
- Weight: 1000kg
- Bucket capacity: 0.025 m³
- Bucket dimensions: 2000mm, 380mm, 500mm
- Engine: Diesel Buy Euro 5
- Motor power: 8.6 kw / 3600r / min
- Main pump: Wanye Hydraulic
- Hydraulic pressure: 16mpa
- Swing motor: Dali
- Drive motor: Dali
- Driving speed: 1.5km / h
DIMENSIONS
- Dimensions (LxWxH): 2770x896x1490 mm
- Track length: 1230 mm
- Chassis width: 930 mm
- Track width: 200 mm
- Ground clearance: 132 mm
- Track height: 320 mm
WORKING RANGE
- Max. dig depth: 1650 mm
- Max. dig height: 2610 mm
- Max. dump height: 1850 mm
- Max. dig radius on the ground: 2890 mm
- Rotation radius: 360 °
- Max. Upgrade height of bulldozer blade: 345mm
- Max. digging depth of bucket: 255 mm
ACCESSORIES
- ground Drill
- Grapple
- Digging tooth
- Rake
- Narrow box 200 mm
- Narrow box 380 mm
- Leveling tray 500mm
- Leveling tray 800mm
- Shortcut
- demolition hammer
