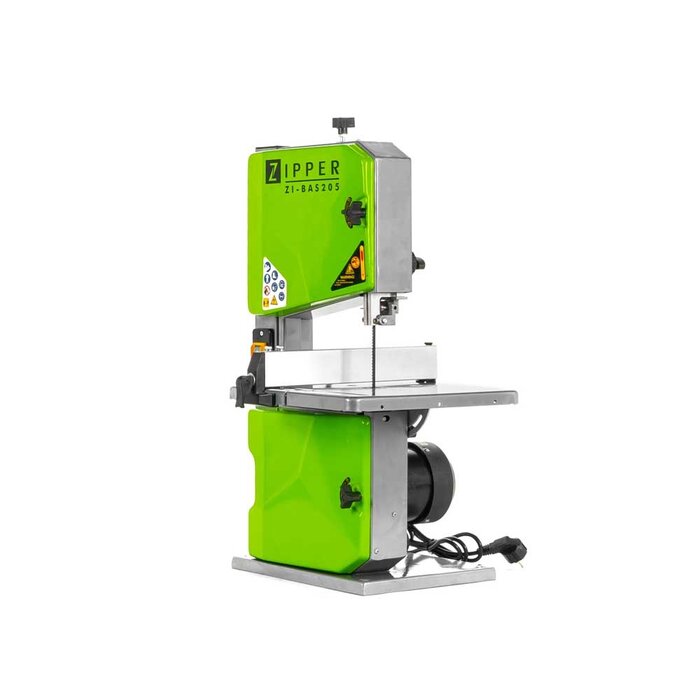

zipper Band saw ZI-BAS205

Band saw ZI-BAS205

A safe and reliable basic machine with 250 watt motor power.
Height-adjustable saw blade guide for safe use and workpiece-dependent work
A tilting saw table for miter cuts and a rip fence complete the machine.
max. cutting width height of 195 mm
Included in delivery: push stick and band saw blade

Technical details

Engine data

Motor power s1 in W. 250 S2 (15 min)
Voltage 230V / 50Hz

Dimensions

Table size in mm 302 x 304
Reach in mm 195
Table height in mm 268.5

Saw performance

Max. height of cut 90 ° in mm 80
Max. height of cut 45 ° in mm 45

Saw band in mm 1400
Saw belt speed in m / min 950
Flywheel diameter in mm 205
Saw band width in mm 3.5-12

Volume level and vibration

Sound power in dB (A) 93

Sound pressure level in dB (A) 82.6

Weight

Gross weight in kg 18.30
Net weight in kg 16.90

Packing

Packaging width in mm 300
Packing length in mm 727
Packaging height in mm 390

General data

Barcode 9120039233529
