Tile block saw STM350-1200PRO
Lumag tile-masonry saw STM350-1200PRO

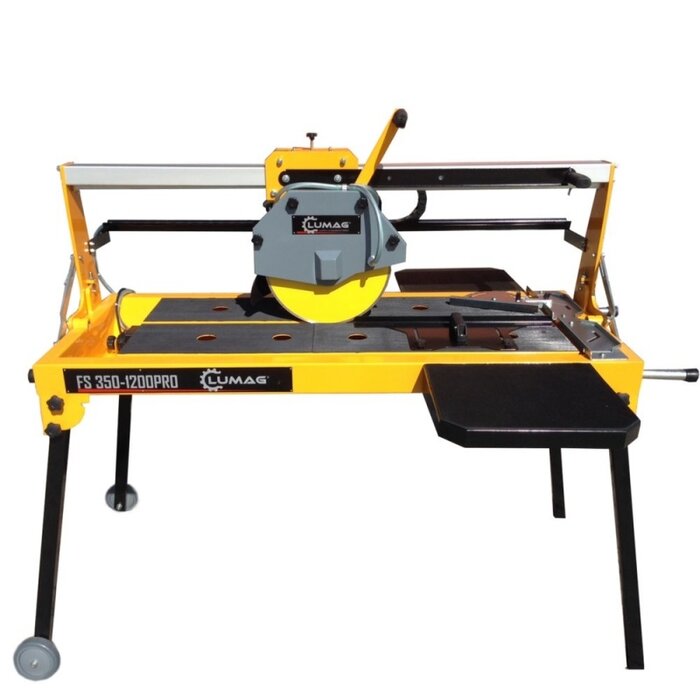

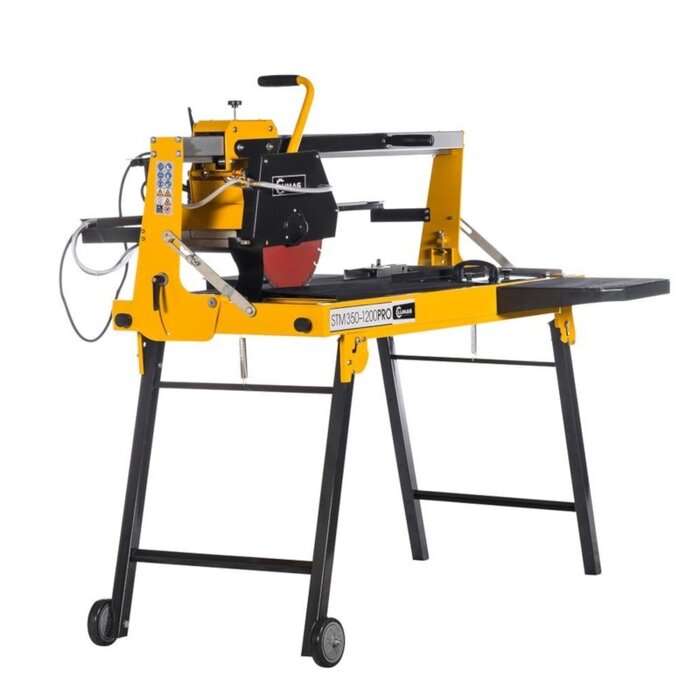

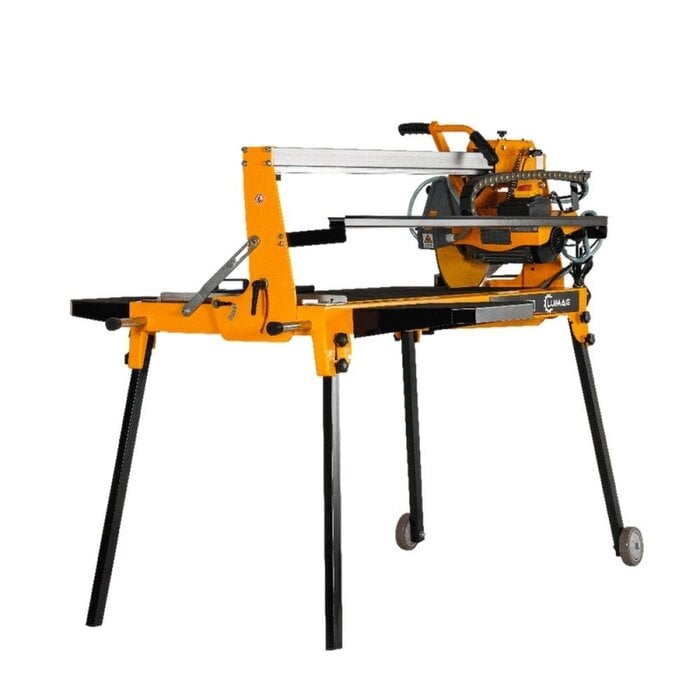

The Lumag STM350-1200PRO is a powerful tile and stone sawing machine with a maximum cutting length of 1200mm and a maximum cutting depth of 107mm (if you saw the material in two times you can even cut 130mm deep)! An ideal machine for cutting tiles, natural stone, ceramic tiles (up to very large format and diagonal cutting), stones, roof tiles, concrete and other building materials.

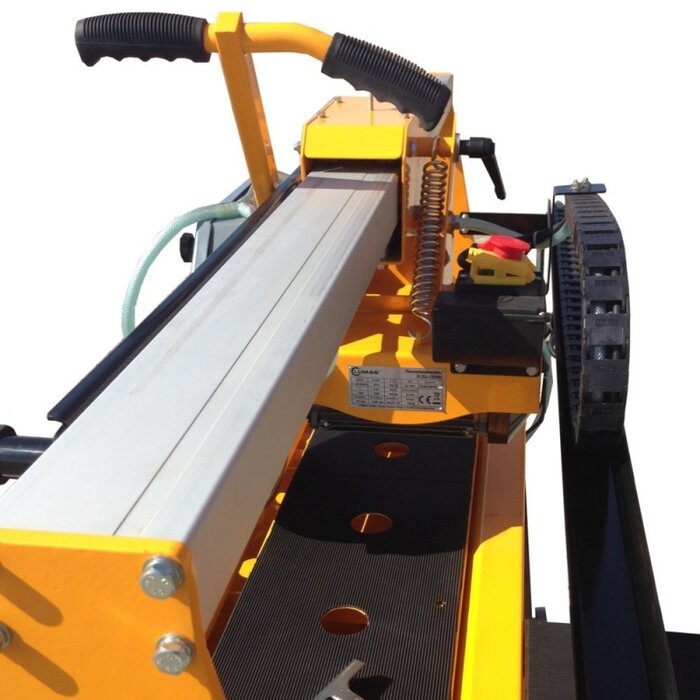

The table top has a rubber top layer which prevents the tile from sliding. This saw table is supplied with two extra heavy side extension worktops as standard, for supporting large tiles. Thanks to the upper arm construction that is equipped with 8 ball bearings, you can saw very accurately. This is of course very important when cutting tiles. The machine can be used with 350 mm saw blades that have an axis hole of 30 mm.
The water basin is equipped with a maintenance-free water pump. The water basin consists of two parts that are connected to each other. The water pump is located in a small separate part of the container. The advantage is that the saw residues sink into the large part of the water basin and the pump therefore pumps the water into the less dirty part of the basin. The machine has a continuously adjustable miter possibility of up to 45 °. The legs are foldable and in addition, two legs are provided with wheels for easy moving of the machine. A high-quality longitudinal guide is included that you can secure at two points, but also a miter guide. The machine is of course equipped with a PRCD safety switch.
The motor can be adjusted in height so that you can also "fall in" with the sawing machine. For example, you can start a cut in the middle of a tile. The Lumag STM350-1200PRO is very easy to clean because you can easily remove both countertops on the machine without tools. The machine is also equipped with extendable handles on the back and front for easy transport of the sawing machine.
The machine is supplied as standard with a tile saw blade (with closed edge for wet saws type DS350G) but of course there are also universal, concrete and turbo diamond discs available.
Engine type | 230 Volt electric motor (16A) |
Engine power | 2000 watts |
Speed no-load | 2500 rpm |
Max cutting depth | 107mm |
Max cutting depth (2 x cuts) | 135 mm |
Max cutting length | 1200 mm |
Miter possibility | Yes, 0-45Ëš |
Saw blade diameter | 350 x 30 mm |
Dimensions sawing plate (L x W) | N / A |
Dimensions work table | 1150 x 510mm (excluding leaf broadeners) |
Dimensions saw table (L x W x H) | 1460 x 770 x 1500 mm |
Water pump | Yes |
Dust and water splash density | IP54 |
Contents of water bowl | 32 liters |
Safety switch | Yes, PRCD switch |
Noise level LWA | 85 dB (A) |
Legs | Foldable, 2 with wheels |
Saw blades supplied | 1 tile saw blade |
Insertion possibility saw blade | Yes |
Extension cable | Yes, 10 meters of neoprene |
Weight | 137 kg |
Art. no. | STM350-1200PRO |
Pack sizes (L / W / H) | 1535 x 750 x 700 mm |
Gross weight | 151 kg |
EAN code | 4047424005521 |
