ENGINE G390FX-EL

LONCIN ENGINE G390FX-EL

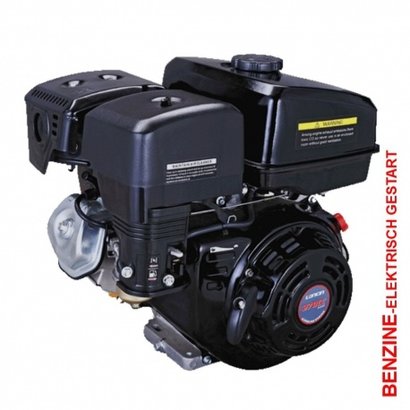

The G390FX-EL is a 13.0 hp Loncin engine with a shaft size of 25.4 mm and equipped with an electric start.
The engine is suitable for intensive use. Loncin engines are strong and reliable.

The G390FX-EL is a 13.0 hp Loncin engine with a shaft size of 25.4 mm and equipped with an electric start.

An electric start means that the engine is ready to be started electrically.

The motorcycle is therefore equipped with a starter motor, a 12V charging coil for recharging the battery (battery not included) and ignition lock with key.

The engine is suitable for intensive use.

Loncin motors are suitable for intensive use. Loncin motors are strong and reliable due to, among other things, the following important product features:

• Reinforced crankshaft, connecting rod, intake and exhaust valve, ball bearings, manual start mechanism and tight valve springs.
• High quality cylinder bushing, valve guides, heat resistant seals, head gaskets, air filter system and aluminum castings.
• For shaft sizes and other sizes, please refer to the following appendix: specifications G390F series motors
• Engine type
  Air-cooled 1-cyl. 4-stroke OHV petrol engine
  max. power
  13 hp, shaft 25.4 mm
  Engine capacity
  389 cm3
  Engine manufacturer
  Loncin (3 year warranty!)
  Engine oil capacity
  1.1 liters
  Tank contents
  6 liters
  Inflammation
  TCI
  Type of fuel
  E5 petrol, Aspen 4-stroke (preferably not E10)
  Launch system
  Pull starter and electric
  Crankshaft diameter
  Ø 25.4mm, 3/8-24INF- 2B female thread (with keyway)
  Just. Couple
  25.1 Nm / 2500 rpm
  Compression rate
  8:2:1
  Bore x Stroke
  88×64mm
  Rpm
  4000 rpm
  Direction of rotation
  Counterclockwise
  Sound level LWA
  70dB(A)
  Direct injection
  no
  Electric start (F)
  Yes, after connecting to 12 Volt battery
  Dimensions (LxWxH)
  450x405x443mm
  Weight
  31kg
  Art. no.
  G390FX-EL
