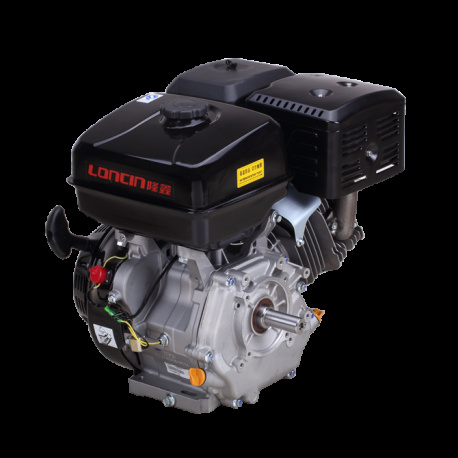

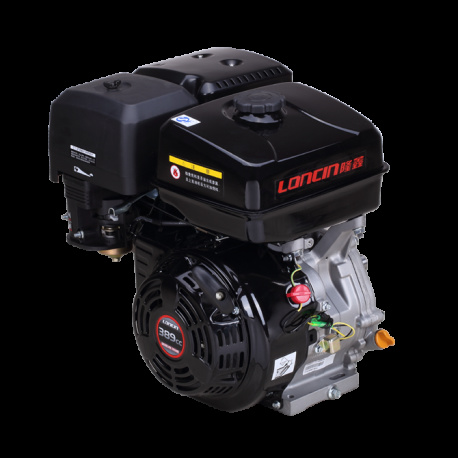

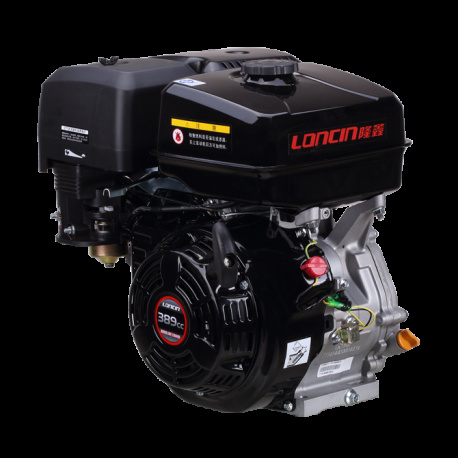

ENGINE G390FL-EL

LONCIN MOTOR G390FL-EL

The G390FL-EL is a 13.0 hp Loncin engine with an axle size of 25 mm and equipped with an electric start.
The engine is suitable for intensive use.

The G390FL-EL is a 13.0 hp Loncin engine with an axle size of 25 mm and is equipped with an electric start. An electric start means that the engine is ready to be started electrically.

The motorcycle is therefore equipped with a starter motor, a 12V charging coil for recharging the battery (battery not included) and ignition lock with key.

Loncin motors are suitable for intensive use. Loncin motors are strong and reliable due to, among other things, the following important product features:

• Reinforced crankshaft, connecting rod, intake and exhaust valve, ball bearings, manual start mechanism and tight valve springs.
• High quality cylinder bushing, valve guides, heat resistant seals, head gaskets, air filter system and aluminum castings.
• For shaft sizes and other sizes, please refer to the following appendix: specifications G390F series motors
• Engine type
  Air-cooled 1-cyl. 4-stroke OHV petrol engine
  max. power
  13 hp, axle 25mm
  Engine capacity
  389 cm3
  Engine manufacturer
  Loncin (3 year warranty!)
  Engine oil capacity
  1.1 liters
  Tank contents
  6 liters
  Inflammation
  TCI
  Type of fuel
  E5 petrol, Aspen 4-stroke (preferably not E10)
  Launch system
  Pull starter
  Crankshaft diameter
  Ø 25mm, 3/8-24INF- 2B female thread (with keyway)
  Just. Couple
  25.1 Nm / 2500 rpm
  Compression rate
  8:2:1
  Bore x Stroke
  88×64mm
  Rpm
  4000 rpm
  Direction of rotation
  Counterclockwise
  Sound level LWA
  70dB(A)
  Direct injection
  no
  Electric start (F)
  no
  Dimensions (LxWxH)
  450x405x443mm
  Weight
  31kg
  Art. no.
  G390FL-EL
