Electric Mini Dumper with Bucket and Wheels: Efficient Transport Solution for 500 kg Payload

ELECTRIC MINI DUMPER WITH BUCKET, WHEELS, 500 KG LOADING CAPACITY AND HYDRAULIC TIPPING DEVICE (EMD301H)

ELECTRIC MINI DUMPER WITH BUCKET, WHEELS, 500 KG LOADING CAPACITY AND HYDRAULIC TIPPING DEVICE (EMD301H)
With the EMD301H with bucket, you get an electric mini dumper with a robust frame and two powerful electric motors of 1,000 watts each (1x for the gearbox and 1x for the hydraulic system for tipping). The mini dumper makes your work a lot easier. Thanks to the powerful battery with a total of 48V-32Ah, you can work up to 8-10 hours when fully charged, depending on use and workload. Due to the small total width of 77.4 cm, the dumper also fits through narrow passages and doors. With the additional hydraulic tilting function, unloading can be carried out with little effort and very comfortably. The maximum load capacity is 500 kg, allowing you to easily transport very heavy loads. In addition, a slope of max. 30° can be overcome without any problems when fully charged. Thanks to the existing electromagnetic brakes, the motorized wheelbarrow can also be steered easily and safely downhill.

ELECTRIC DRIVE
The electric motor makes the mini dumper quiet and does not emit any exhaust fumes. This makes it ideal for both closed spaces and outdoor areas such as buildings or for riding schools, gardens, green areas and cemeteries. The mini dumper has a forward gear (max. 5 km/h) and a reverse gear (max. 1.5 km/h). The mini dumper can easily handle slopes of up to 30°.

EQUIPMENT OF THE MOTOR WHEELBARROW
The spacious loading area of ​​the mini dumper can hold up to 500 kg of hay, garden waste, building rubble or other materials. Thanks to the motorisation, this weight can be transported easily and without any effort. With a tilt angle of 90 degrees, emptying is also very reliable.

TECHNICAL DATA

Model: EMD301H
Electric motor: 1,000 watts / 48V, brushless
Battery: 48V-32Ah, lead acid
Charger: Charger included
Load capacity: max. 500 kg
Tray drive: hydraulic
Speed: approx. 5 km/h forward, approx. 1.5 km/h backward
Dimensions of the container: 118.5x67x40 cm (LxWxH)
Loading volume of the box: approx. 236 litres
Climbing ability: 30°

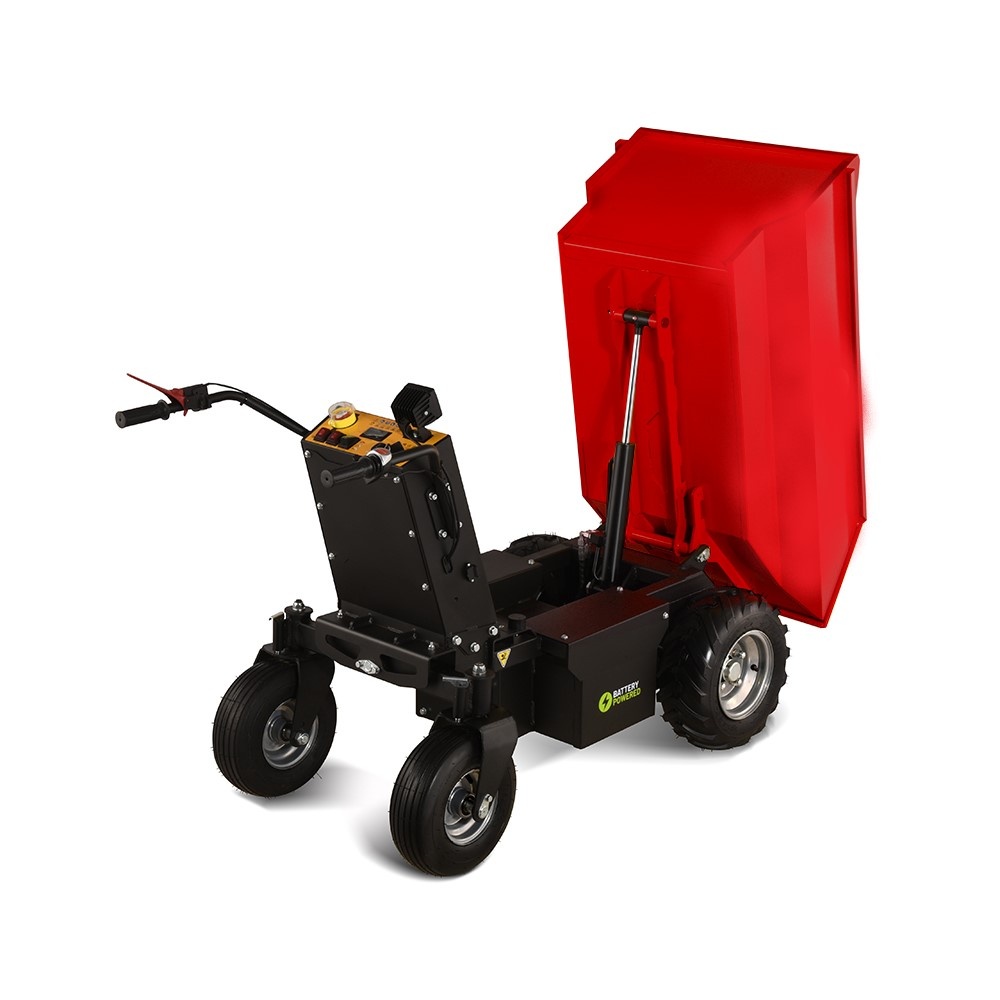

Tilt angle: 90°
Operating time per battery charge: approx. 8-10 hours, depending on usage
Charging time: approx. 6-8 hours
Brake system: electromagnetic brakes
Lighting: LED
Hydraulic oil: HLP46
Total weight: 212 kg
Weight with packaging: approx. 242 kg

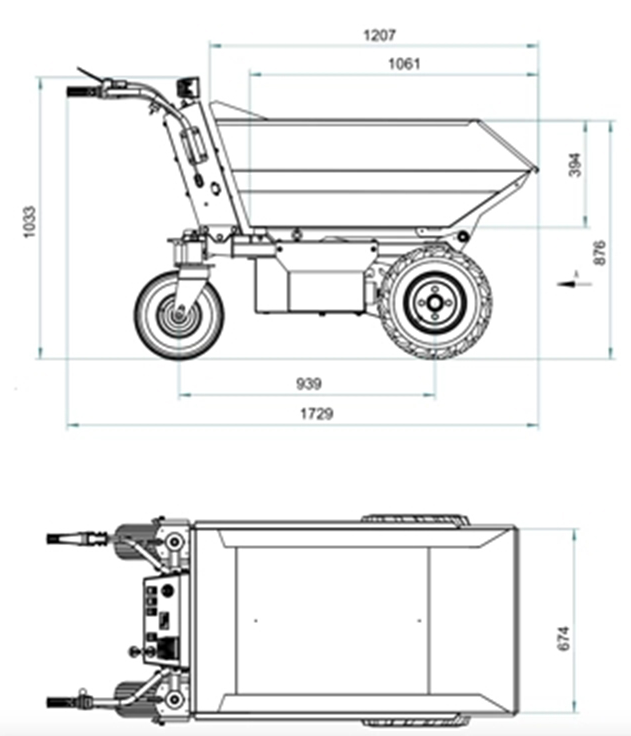

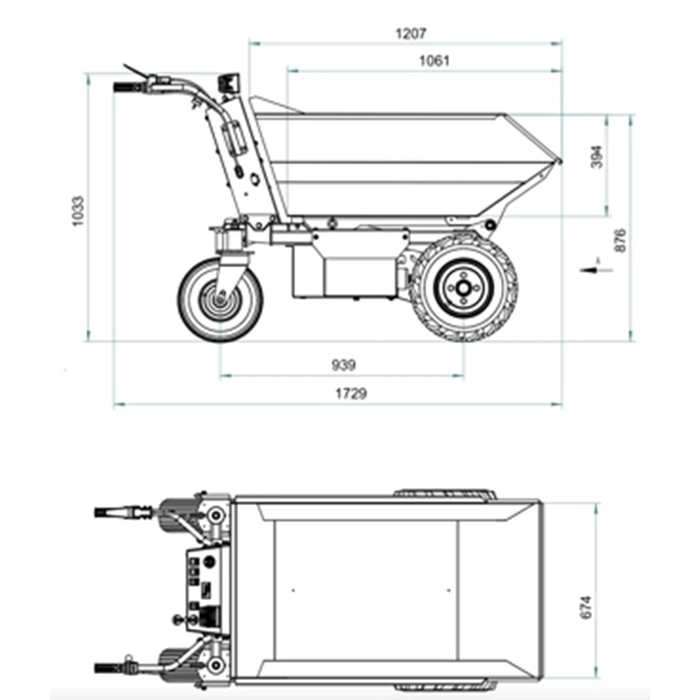

Dimensions: 172.9×77.4×103.3 cm (LxWxH)
Package dimensions: 143x77x86 cm (LxWxH)
