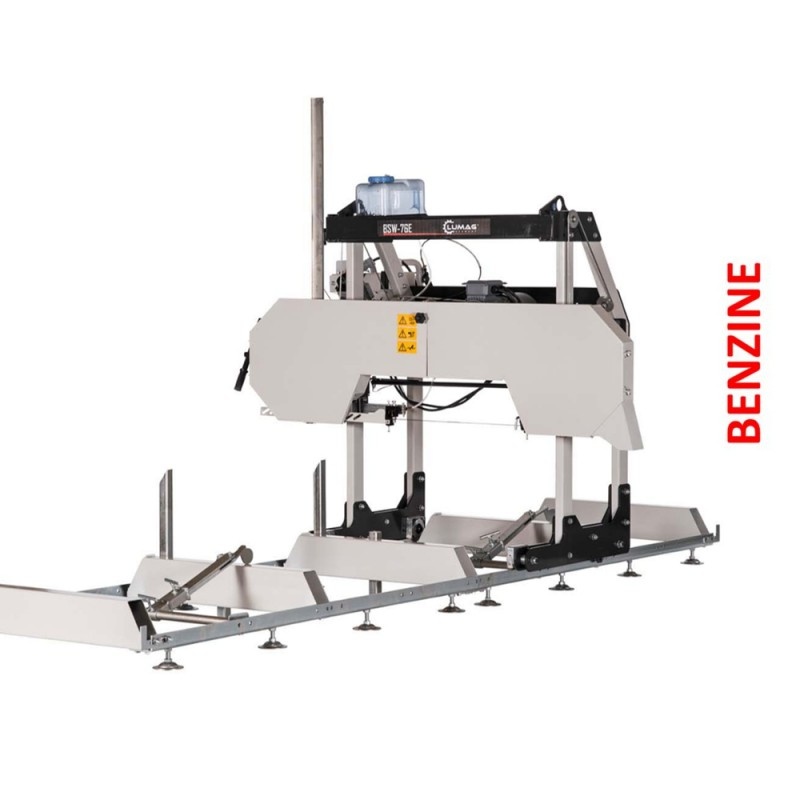

BEAM AND PLANK SAW BSW76GL
LUMAG BEAM AND PLANK SAW BSW76GL
The Lumag band saw BSW76GL is equipped with a very powerful 4-Stroke 13HP 420cm3 Loncin petrol engine.
The Lumag BSW76GL is also known as a horizontal band saw, tree saw or block band saw. It is a solid log saw/tree sawing machine.
With this band saw you can saw your tree trunks into beautiful planks and beams.
The maximum trunk diameter that can be cut is 76 cm.
The sawing machine is easy to assemble and move.

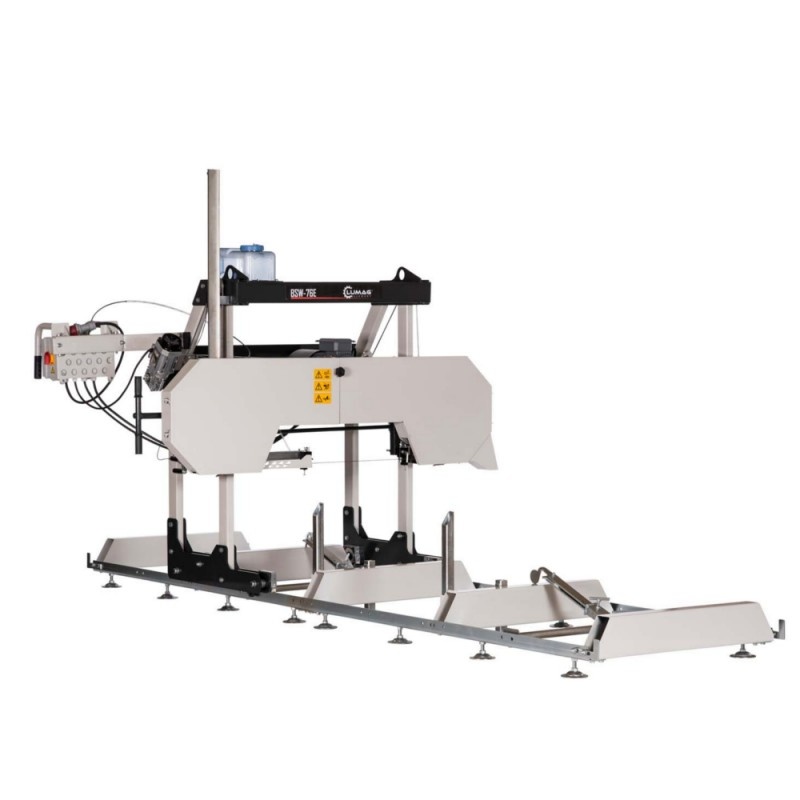

The machine is standard equipped with a 13 HP petrol engine, but is also available with a powerful 400 Volt / 7500 Watt electric motor.
Partly because of this, the machine can be mounted anywhere you want to saw trees.
The engine is started electrically. The chassis has a standard length of 3.96 meters but can be extended indefinitely.
Due to its construction and the smooth and smooth running of the drive wheels, the sawing machine is very suitable for sawing soft, hard and dry wood.
The advancing of the saw is done manually. In the standard version, the machine can cut logs up to 3.1 meters in length.
Optionally, the machine can be extended indefinitely with extra extensions (per 1950mm).
This means that there is no limitation with regard to the maximum boom length.

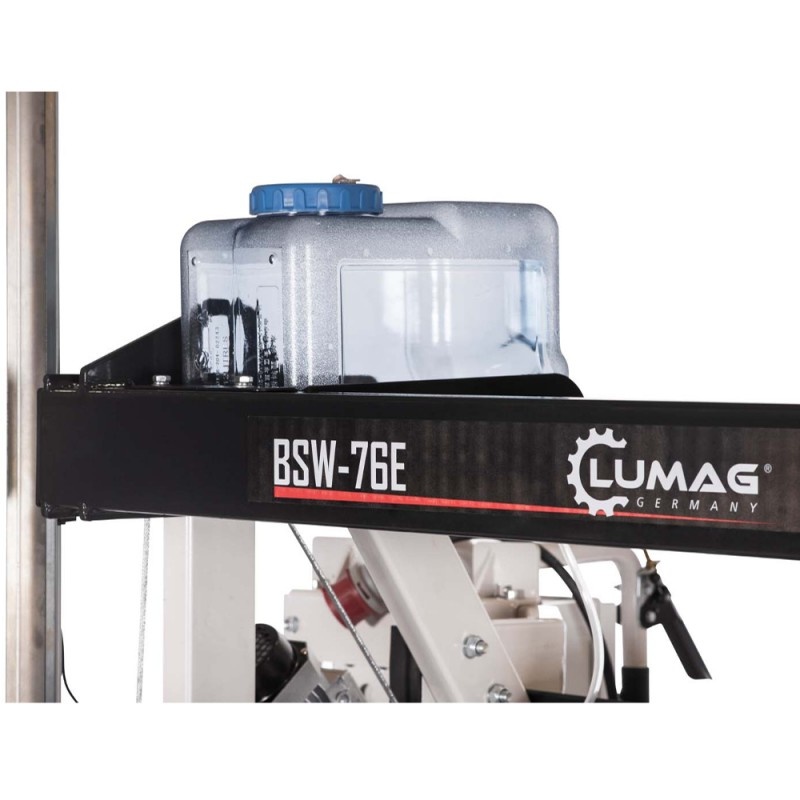

The 12 liter tank can be filled with coolant (water) and is equipped with an adjustable water tap to additionally cool the saw blade.

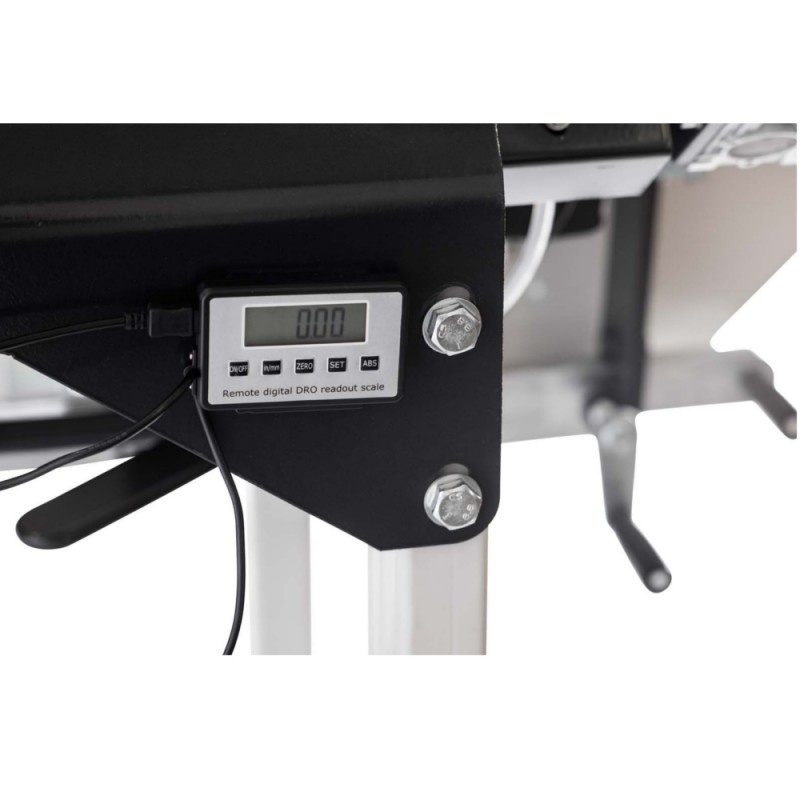

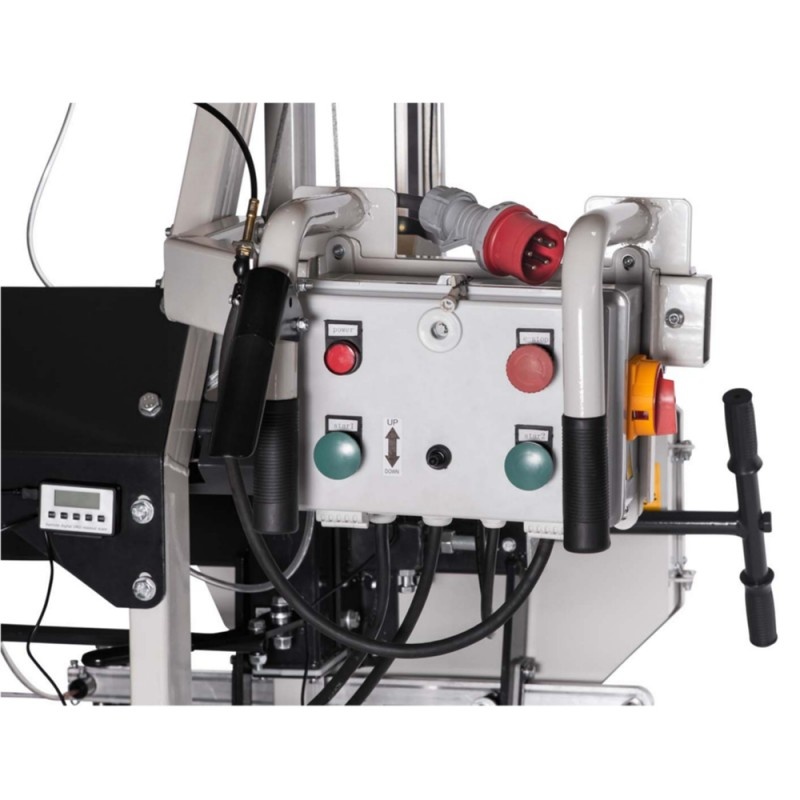

The machine is equipped with a motorized (electric motor works on 12V battery) height adjustment with electric height display.
So you set the saw thickness electronically.

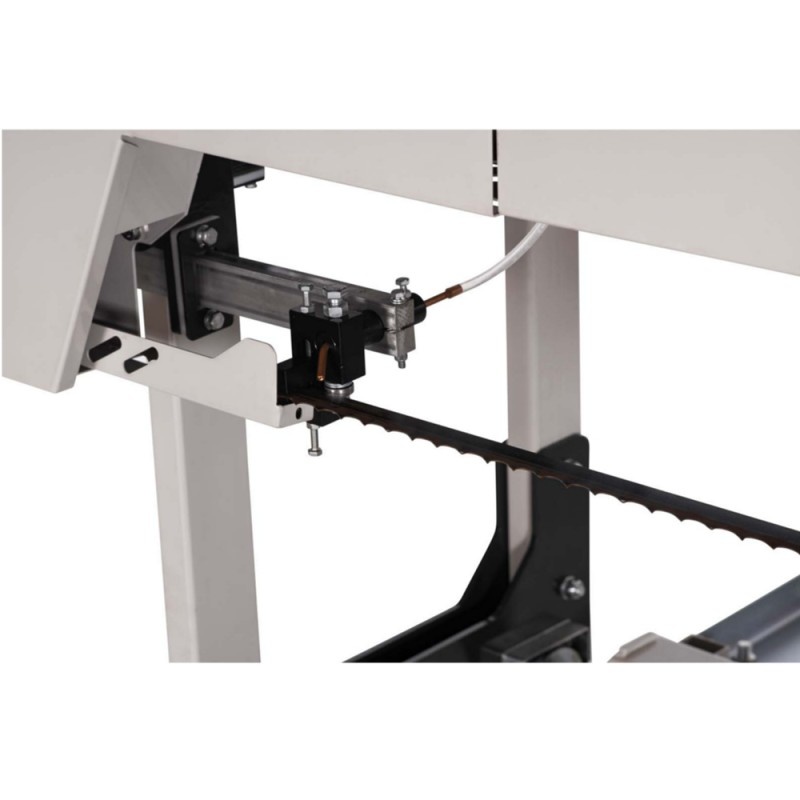

The machine is equipped with a band saw type Woodmaster / Lenox (L/4026 x W/32 x Strength 1.1 mm with 22 mm tooth spacing)
Engine type
Air-cooled 1-cyl. 4-stroke OHV petrol engine
Displacement
420 cm3
max. assets
13 hp
Engine manufacturer
Loncin (3 year warranty!)
Fuel type
Euro 95 / 98 / Alkylate petrol (Aspen 4)
Start system
pull starter
max. trunk diameter
760mm
max. plank width
760mm
Max. cutting height setting
620mm
min. Cutting height setting
50mm
max. cutting depth
130mm
Saw frame length*
3960mm
* extension saw frame
1950mm
max. cutting length
In the base: 3.1m / unlimited
min. cutting length
990mm
Sawing machine drive
manual
Flywheel diameter
474mm
Flywheel width
24mm
Band saw speed
19m/sec
Saw cut thickness
1.4-2.2mm
Cooling tank content
12 liters
Weight of additional saw frame
54kg
Weight Gross (incl. packaging)
478 kg
Weight Net
423 kg
Pack sizes (L/W/H)
2260 x 730 x 885mm
Dimensions (LxWxH)
44700 x 2035 x 1720mm
art. no.
BSW76GL
EAN code
4047424 008041
