BATTERY WHEELBARROW MD500EK

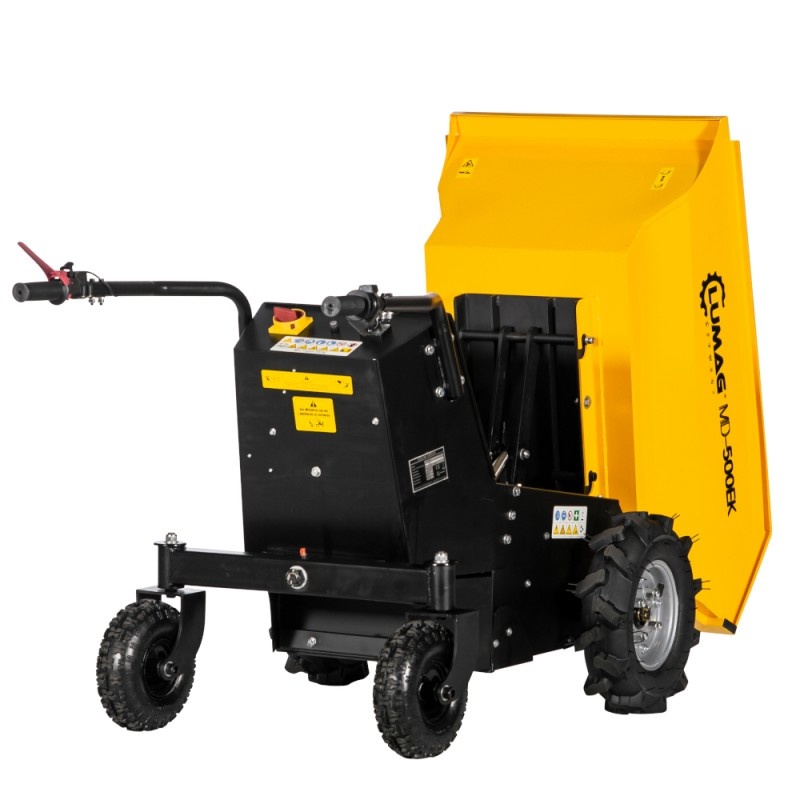

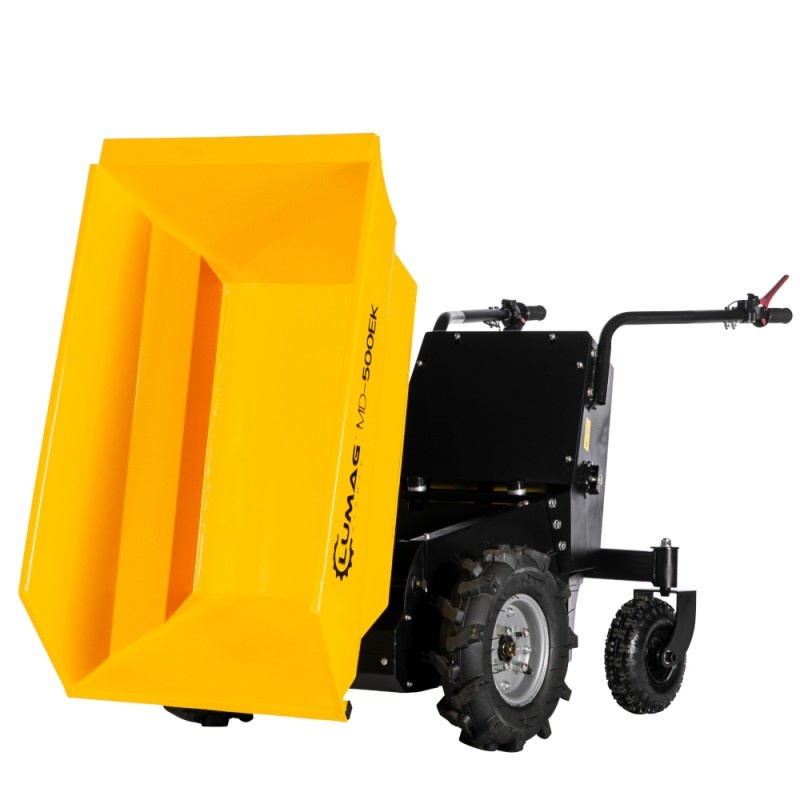

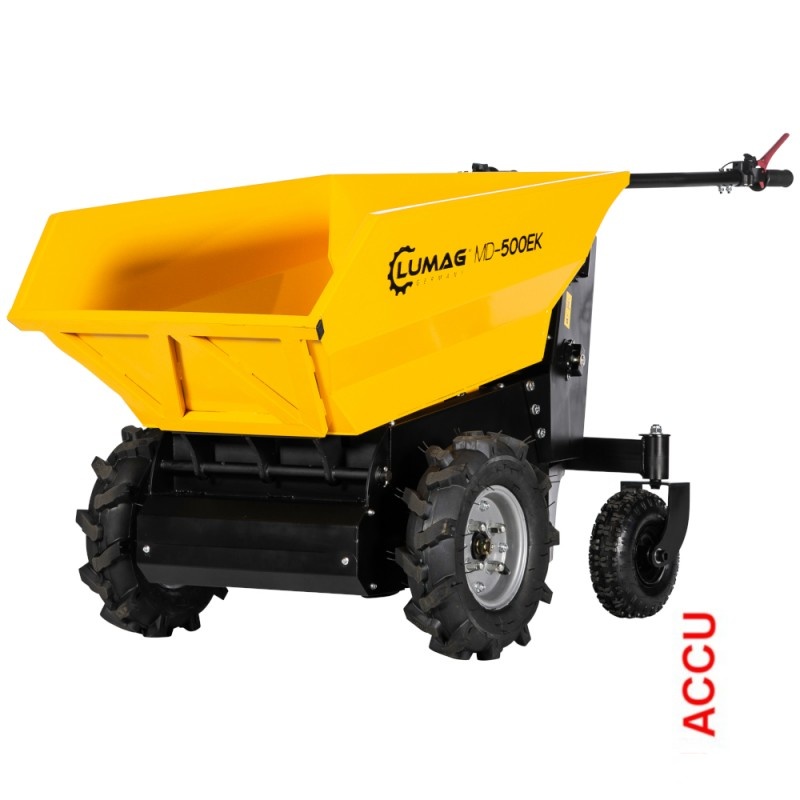

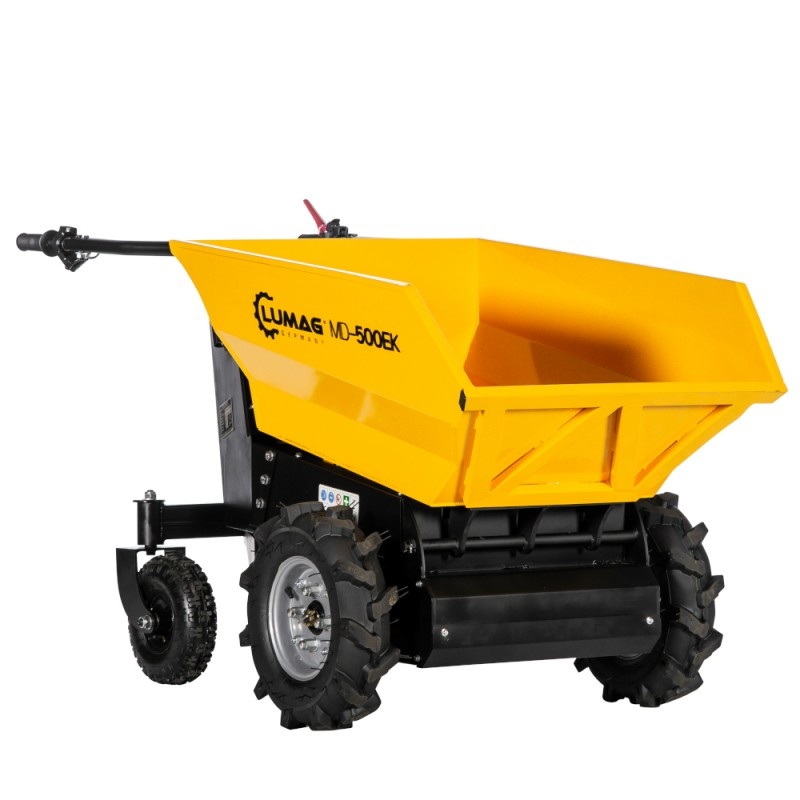

LUMAG BATTERY WHEELBARROW MD500EK
This Lumag MD500EK battery wheelbarrow with electric tipping function is unique because it is equipped with an electric motor with a 48-volt battery.
The motor provides a capacity of 1000 Watts.
The electric motor in combination with the belt drive makes this a very universal dumper / wheelbarrow.
The machine is very suitable for the transport of many materials up to a weight of 500 kg over various surfaces.
We recommend the MD500EPRO for professional use (intensive use).
By using tires instead of tracks, the load on the surface is reduced and the machine is very manoeuvrable, even on hard and soft surfaces.
The MD500EK has two castor wheels at the rear for easy steering.
Stability is additionally supported by a pivoting rear axle.
This ensures that your wheelbarrow almost always touches the ground with 4 wheels.
The electric motor ensures that the noise production is minimal and that the machine can also be used in a closed space.
The dumper is also equipped with an electro-magnetic brake.
The 48 volt batteries (4 pieces of 12 volts, content 20 Ah) ensure that you can use the machine for a maximum of 4 hours (charging time 12 hours).

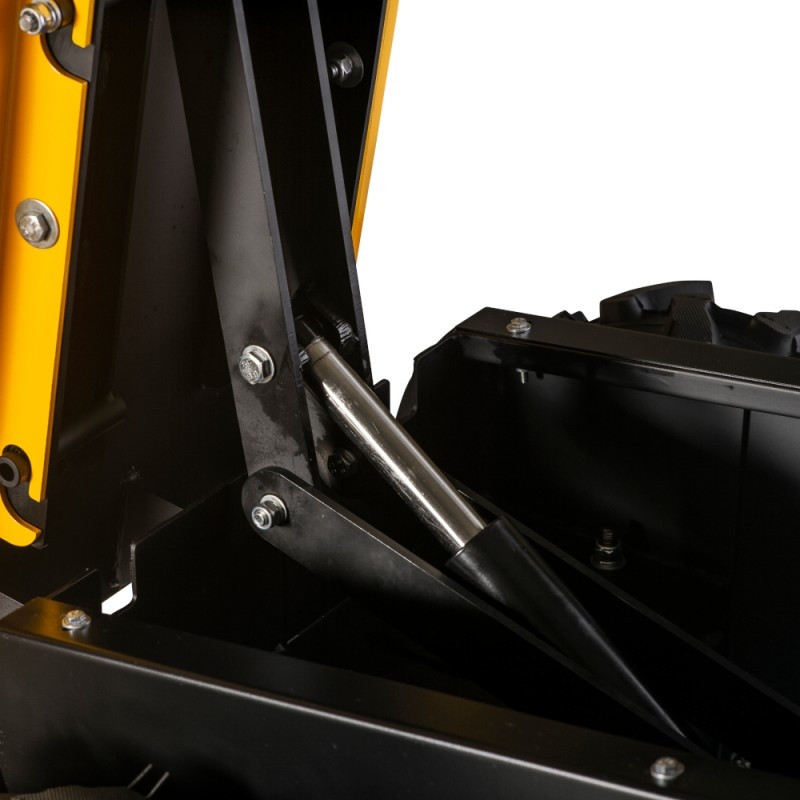

The machine has an electric tipping function by using a spindle.
So you can tilt the bucket mechanically with a switch.
The MD500EK is also equipped with an electromagnetic brake.
The widest point of the machine is 84cm on the front wheels.
The width on the rear wheels is 75 cm.
The dump body dimensions are (LxWxH) 1050x720x400 mm.
The height of the machine is 90cm.
The maximum load capacity is 500kg.
The weight of the machine is 215kg.
The MD500EK battery wheelbarrow is supplied WITHOUT a snow blade.
The snow plow shown is available as an accessory.
Type Engine
Battery electric motor
Engine power
1000 Watts
Battery voltage
48 Volts (4 x 12 Volts, 20Ah)
Drive Mechanism
Electric (full)
Drive
Wheel drive
Operating time
max. 4 hours
Charging time
max. 12 o'clock
Working width
84 cm
Gears forward
1
Max . speed forward
5 km/h
Reverse gears
1
max. speed backward
3 km/h
Handbrake
Electro magnetic brake
Body dimensions (L x W x H)
1050 x 720 x 400mm
max. rate of increase
15%
max. payload
500 kg
Tyres
Before: 4.00-8; Rear 4.10-4
Machine dimensions (L x W x H)
1800 x 840 x 900mm
Pack sizes (L/W/H)
1360x800x880mm
Weight Gross (incl. packaging)
230 kg
Weight Net
215 kg
art. no.
MD500EK
EAN code
4047424007037
